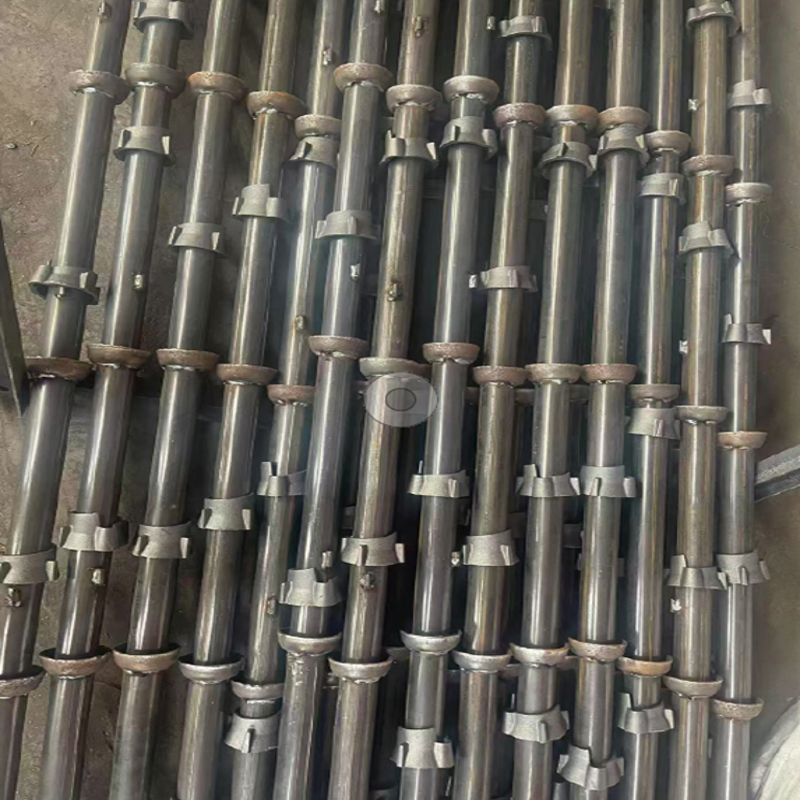

Cuplock scaffolding
It features high structural strength, good overall stability and reliable self-locking performance, which can better meet the needs of construction safety
Application scenarios: Construction sites, road and bridge construction, municipal engineering and stage setup for large-scale events .
Product Category
Product Description
| Model | A（mm） | Theoretical weight kg | Remarks | |
| Crossbar | HG-30 | 300 | 1.67 | The material is Q235
The wall thickness is 3.0mm-3.5mm |
| HG-60 | 600 | 2.82 | ||
| HG-90 | 900 | 3.91 | ||
| HG-120 | 1200 | 5.12 | ||
| HG-150 | 1500 | 6.28 | ||
| Erect pole | LG-30 | 300 | 2.03 | The material is Q235
The wall thickness is 3.0mm-3.5mm |
| LG-60 | 600 | 4.06 | ||
| LG-90 | 900 | 5.6 | ||
| LG-120 | 1200 | 7.41 | ||
| LG-150 | 1500 | 8.91 | ||
| LG-180 | 1800 | 10.67 | ||
| LG-210 | 2100 | 12.21 | ||
| LG-240 | 2400 | 14.02 | ||
| LG-300 | 3000 | 17.31 |
