Ringlock scaffolding
The surface treatment of the product adopts hot-dip galvanizing anti-corrosion process, which increases the service life and will not reduce the load-bearing capacity due to rust.

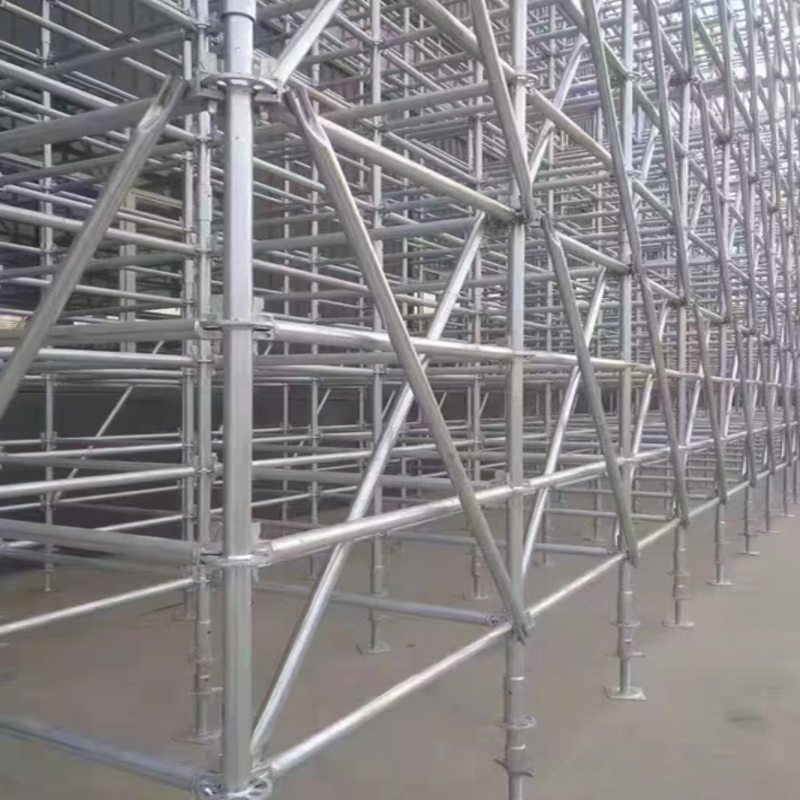

Application scenarios: Construction sites, road and bridge construction, municipal engineering and stage setup for large-scale events .
Product Category
Product Description
| Series 48c d | Specification and model M | Weight of each piece KG | Actual length M | Number of pieces/
weight per piece |

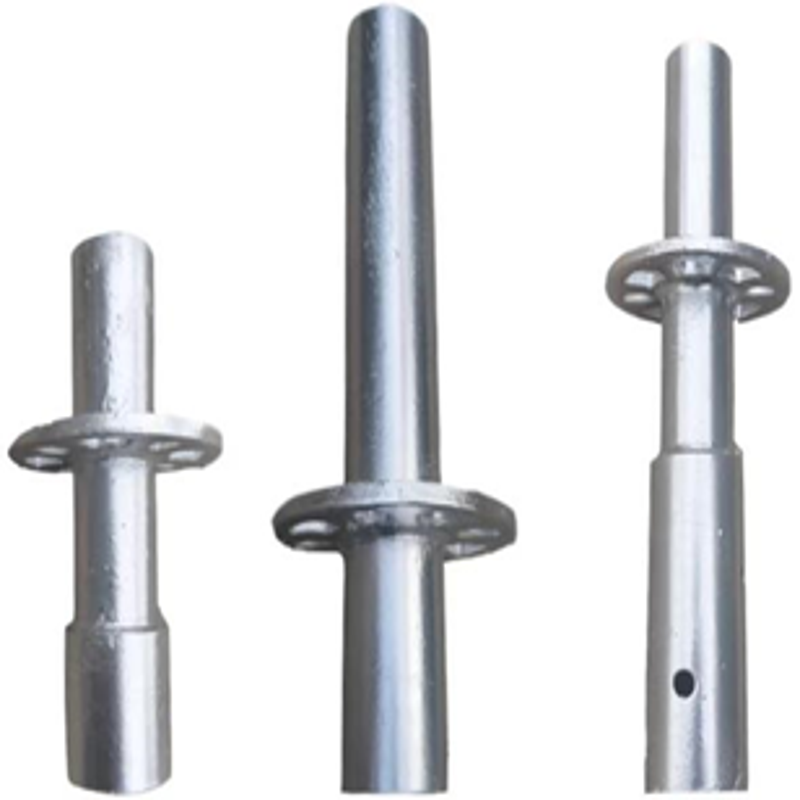

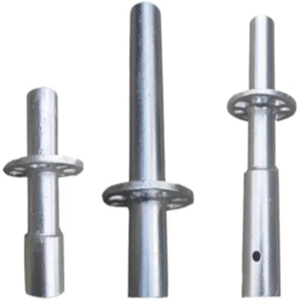

| Erect pole | 2.5 | 13.1 | 2.61 | 161/2.13 |
| 2 | 10.65 | 2.11 | 161/1.77 | |
| 1.5 | 8.3 | 1.61 | 161/1.37 | |
| 1 | 5.75 | 1.11 | 161/0.97 | |
| 0.5 | 3.44 | 0.61 | 483/1.75 | |
| Crossbar | 1.8 | 6.17 | 1.75 | 336/2.07 |
| 1.5 | 5.21 | 1.45 | 336/1.75 | |
| 1.2 | 4.35 | 1.15 | 336/1.41 | |
| 0.9 | 3.35 | 0.85 | 336/1.12 | |
| 0.6 | 2.34 | 0.55 | 336/0.8 | |
| Diagonal tie rod | 0.6*1.5 | 5.43 | 1.61 | 300/1.66 |
| 0.9*1.5 | 5.76 | 1.71 | 300/1.76 | |
| 1.2*1.5 | 6.2 | 1.86 | 300/1.86 | |
| 1.5*1.5 | 6.7 | 2.04 | 300/2 | |
| Riveted hook pedal | 900*240*55 | 5.3 | 1 | 60/0.318 |
| 1200*240*55 | 6.7 | 1.3 | 60/0.402 | |
| 1500*240*55 | 8.3 | 1.6 | 60/0.498 | |
| Reinforced adjustable support | 38#*600 | 4.8 | 0.6 | 150/0.73 |
| Adjustable base support | 38#*500 | 3.4 | 0.5 | 150/0.52 |
